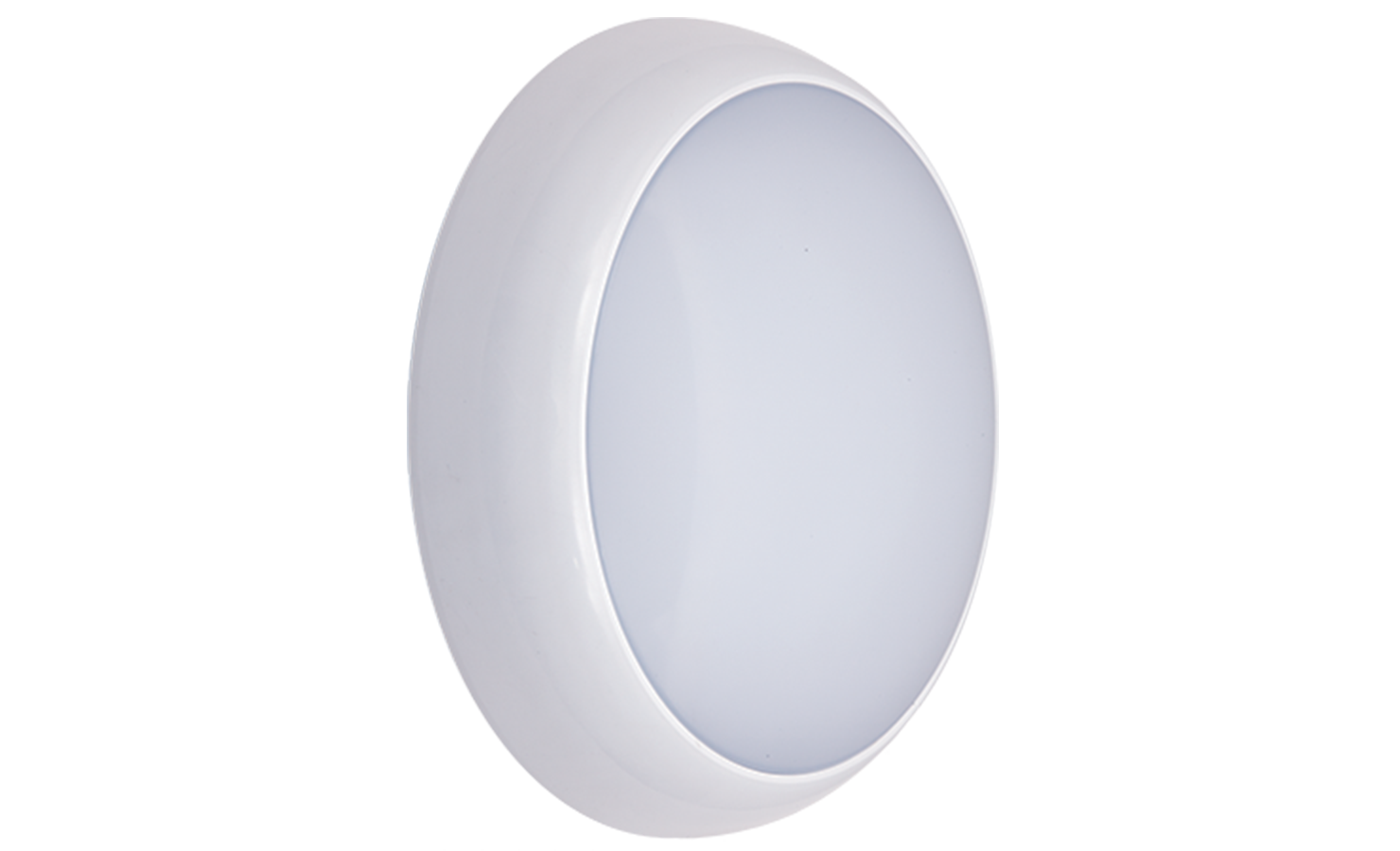

EXTON
Ultra Long Life LED Amenity Lighting. For maintenance free industrial and commercial application.
EXTON
Rear cable entry

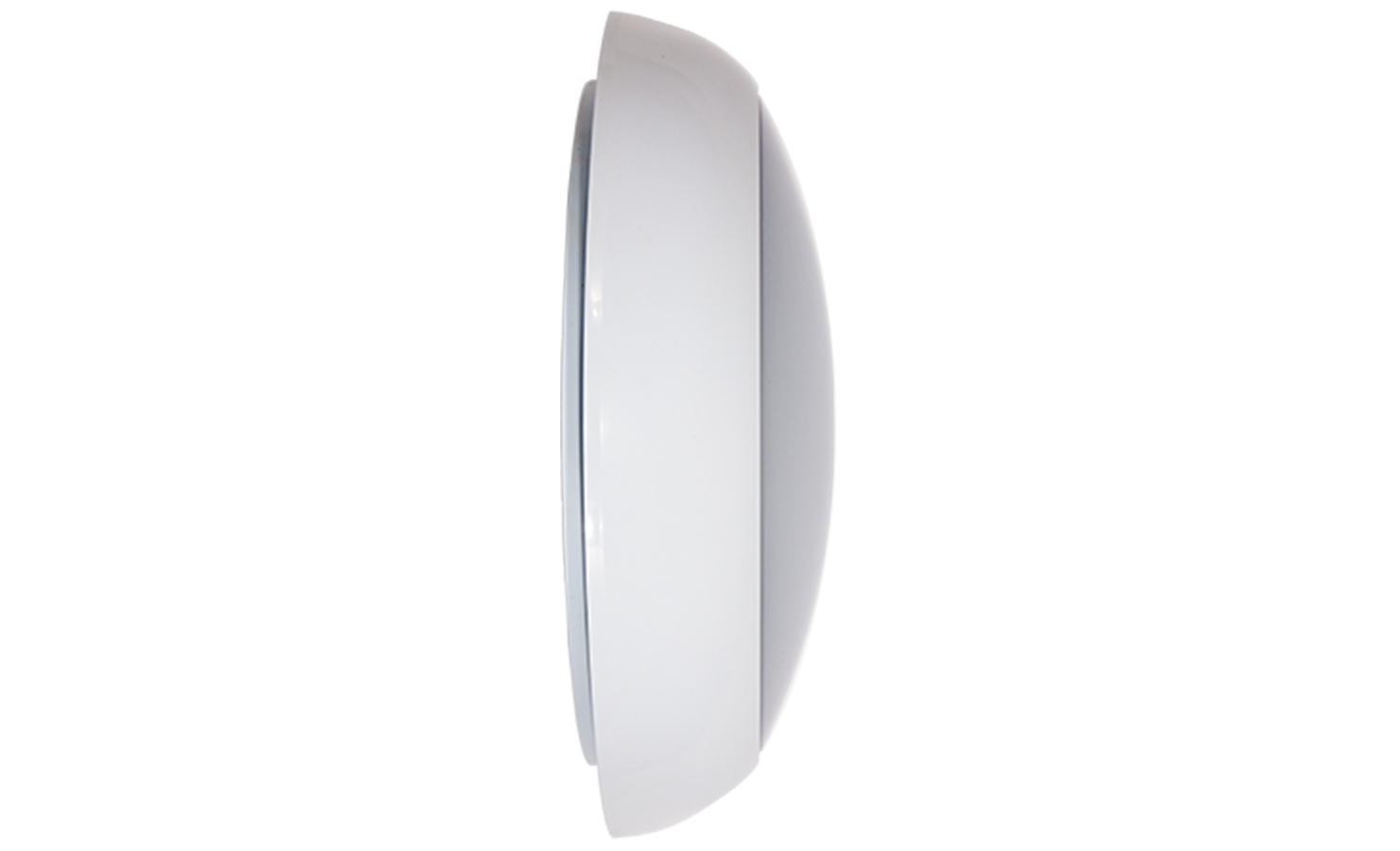

Ultra modern curved profile
The most cost effective LED bulkhead solution available. Offering a replacement to traditional 2D luminaires the Exton is surface mounted to offer a flush appearance. The addition of an internal microwave sensor further increases the energy saving.
Standard Features
- ABS body.
- Polycarbonate diffuser.
- Curved flush appearance.
- Available with dimming and microwave sensor.
- Emergency available with 20w.
Applications
- Stairwells
- Corridors
- Toilets
- Student Accommodation
Ambient Temperature Guidance
-20°C to +40°C
EXTON Specification Guide
| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | D (mm) | Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| EXT12/4K | 12W | 965 | 80 | 4000 | 95 | 270 | 0.7 |
| EXT20/4K | 20W | 1,744 | 87 | 4000 | 107 | 320 | 1.2 |
To Order Features
(Add suffix to order code)
Sensor Options
- /HMS
- On/Off sensor
- /MSDIM
- 100%/10% dimming plus sensor
Emergency Options
- /M3
- 3hr integral emergency (20w only)
Example Order Code
EXT20/4K/HMS – A 20 watt LED Exton amenity luminaire with On/Off sensor.EXTON Dimensions
Note: All dimensions are in millimetres.
EXTON Photometry
Please contact us for further information regarding this product.
