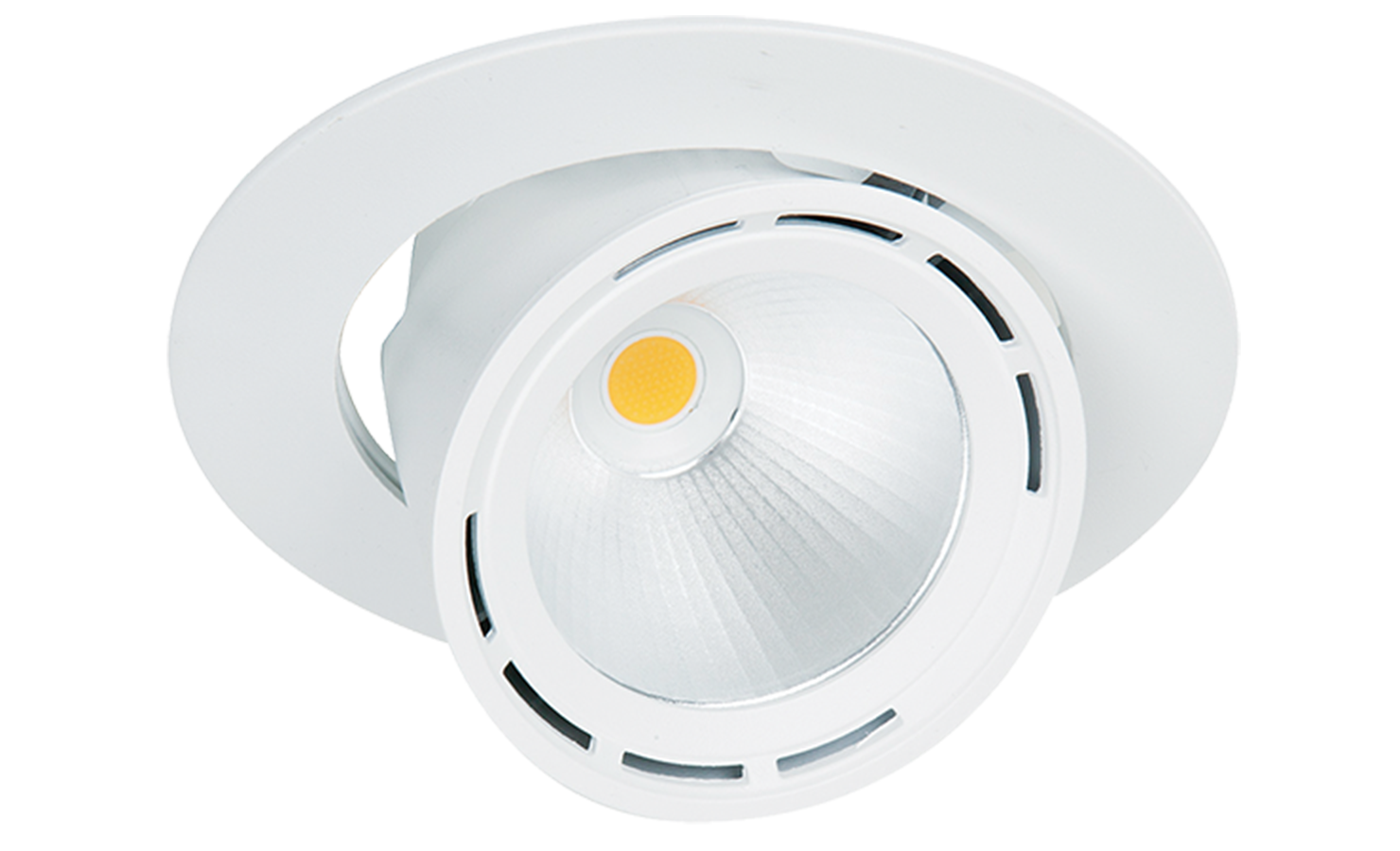

PROLED50 MDL19M
Mini recessed circular scoop downlight
PROLED50 MDL19M
A recessed, fully adjustable, circular downlight offering a wide choice of CCT & reflector options. Ideal for directional illumination of walls and displays.
Standard Features
- Powder coated die cast aluminium body.
- MacAdam 2 SDCM.
- RAL9006 – Silver, RAL9016 – White, RAL9005 – Black.
- Adjustable driver.
- Citizen 6th Generation LED COB.
- 90° tilt and 355° turn.
- IP20.
Applications
- Leisure
- Retail
- Hospitality
PROLED50 MDL19M Specification Guide
| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | CRI | Cutout Diameter (mm) | Weight (kg) | Reflector | Colour |
|---|---|---|---|---|---|---|---|---|---|
| MDL19M17W/21/FL/W | 17W | 2,125 | 125 | 4000 | 90+ | 153 | 1.1 | 30° | White |
| MDL19M25W/21/FL/W | 25W | 2,925 | 117 | 4000 | 90+ | 153 | 1.1 | 30° | White |
| MDL19M35W/21/FL/W | 35W | 3,750 | 107 | 4000 | 90+ | 153 | 1.1 | 30° | White |
To Order Features
(Add suffix to order code)
Driver Options
- /LSLV
- DALI
LED CCT Options
- /18
- CRI90 2700K BBL
- /19
- CRI90 3000K BBL
- /20
- CRI90 3500L BBL
- /32
- BAKERY 2400K
- /33
- MEAT 2000K
Reflector Options
- /NFL
- 20° narrow flood
- /SP
- 15° spot
- /WFL
- 50° wide flood
Colour Options
- /B
- Black
- /S
- Silver

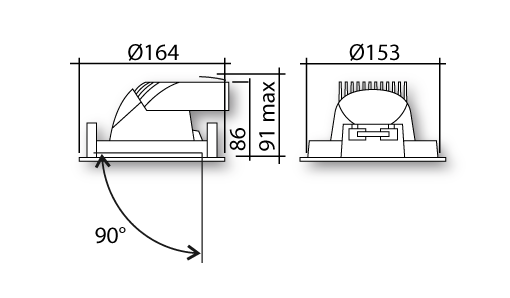

PROLED50 MDL19M Dimensions
Note: All dimensions are in millimetres.
PROLED50 MDL19M Photometry
Please contact us for further information regarding this product.
