PROLED ATL
Surface or suspended IP66 linear.
PROLED ATL

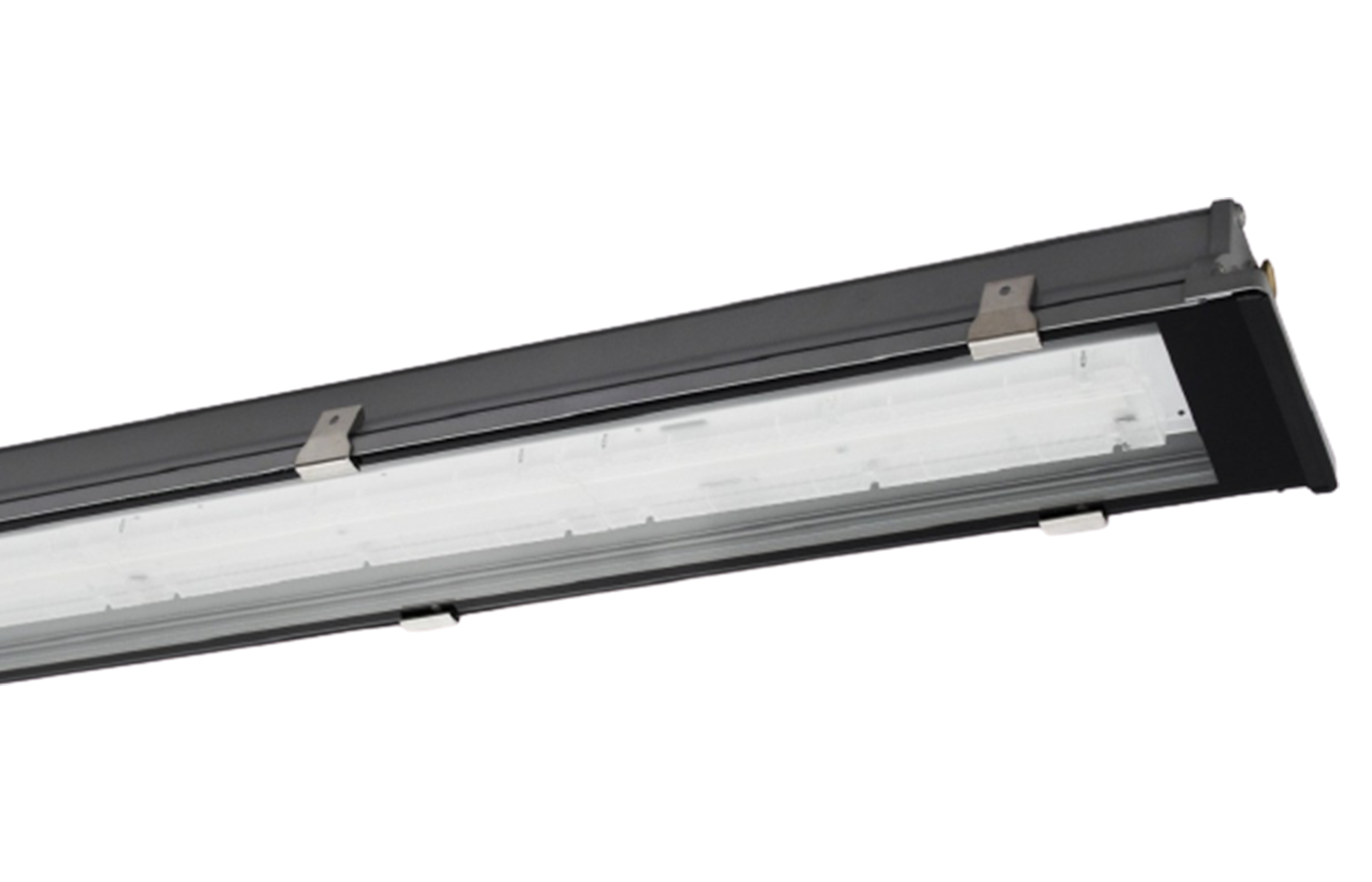

A surface IP66 LED luminaire with tempered safety glass diffuser and grey extruded aluminium body. Suitable for surface or suspension mounting.
Standard Features
- Grey aluminium body with safety glass diffuser.
- IP66.
- IK10.
- Integral emergency available.
- Surface mount as standard and can be suspended.
Applications
- Industry
- Food Processing
- Warehouse
- Agriculture
Ambient Temperature Guidance
-20°C to +35°C (excluding emergency)
PROLED ATL Specification Guide
100,000hrs Rated LED
| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | L (mm) | W (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| ATL1243KA | 24W | 3,098 | 128 | 3000 | 1224 | 105 | 75 | 4.6 |
| ATL1244KA | 24W | 3,227 | 133 | 4000 | 1224 | 105 | 75 | 4.6 |
| ATL1303KB | 30W | 3,872 | 128 | 3000 | 1524 | 105 | 75 | 5.5 |
| ATL1304KB | 30W | 4,034 | 133 | 4000 | 1524 | 105 | 75 | 5.5 |
50,000hrs Rated LED
| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | L (mm) | W (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| ATL1513KA | 51W | 5,746 | 114 | 3000 | 1224 | 105 | 75 | 4.6 |
| ATL1514KA | 51W | 5,986 | 118 | 4000 | 1224 | 105 | 75 | 4.6 |
| ATL1633KB | 63W | 7,183 | 114 | 3000 | 1524 | 105 | 75 | 5.5 |
| ATL1634KB | 63W | 7,482 | 118 | 4000 | 1524 | 105 | 75 | 5.5 |
75,000hrs Rated LED
| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | L (mm) | W (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| ATL1343KA | 34W | 4,214 | 124 | 3000 | 1224 | 105 | 75 | 4.6 |
| ATL1344KA | 34W | 4,390 | 130 | 4000 | 1224 | 105 | 75 | 4.6 |
| ATL1423KB | 42W | 5,268 | 124 | 3000 | 1524 | 105 | 75 | 5.5 |
| ATL1424KB | 42W | 5,487 | 130 | 4000 | 1524 | 105 | 75 | 5.5 |
To Order Features
(Add suffix to order code)
Driver Options
- /LSLV
- DALI
Sensor Options
- /COR
- Corridor function - never off
- /COR1
- Corridor function - off after 1 minute
- /COR30
- Corridor function - off after 30 minutes
Reflector Options
- /2XASSYOPT
- Optic with double asymmetric beam
- /30X90OPT
- Optic with 30x90° beam angle
- /60X100OPT
- Optic with 60x100° beam angle
- /ASSYOPT
- Optic with asymmetric beam
Emergency Options
- /L3
- Integral 3 hour emergency with DALI interface
- /M3
- Integral 3 hour emergency
- /M3A
- Integral 3 hour emergency with auto test function
- /M3LT
- Integral 3 hour emergency with auto test function, suitable for low ambient temperatures up to -25C
Accessory Options
- /2XPSSR
- 2 x strain relief for power supply cable
- /5PTB
- 5-pole terminal block for through wiring
- /PSSR
- Strain relief for power supply cable
- /TW3P
- 3 x 1.5mm through wiring terminal block
- /TW3P2.5MM
- 3 x 2.5mm through wiring terminal block
- /TW5P
- 5 x 1.5mm through wiring terminal block
- /TW5P2.5MM
- 5 x 2.5mm through wiring terminal block
PROLED ATL Photometry
Please contact us for further information regarding this product.
